Solid Fuel Fired Boilers

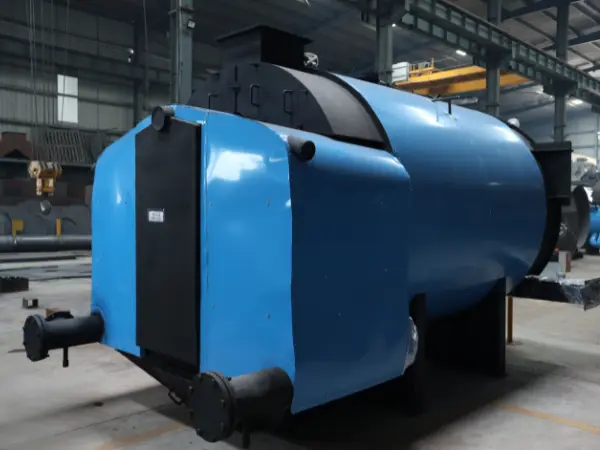

Solid Fuel Fired Boilers - Intech boiler

Description
This is the standard 3 pass smoke-tube style coal / wood dismissed boiler having inner chambers. This comes in dry back, semi-wet back and totally wet-back choices and is best suited for manual fired of coal, wood or briquettes.
The chamber is completely submerged in water and also the grate bars are fastened in the chamber. The fuel is dismissed on the grate and also the flue gases travel in the smoked tubes of second & third pass.
To Water Pre-Heater might also be provided of shell and tube style to reinforce the potency of the systems by sick waste heat from flue gases going out of the boiler.
Advantages

giant convective heating surface within the 2nd& third pass tubes ensures wonderful heat transfer
giant water holding and steam holding area offers fast response to unsteady steam demands.
Dry steam reduces the interval, to saves steam and to improves quality of processed merchandise
Horizontal prepacked boilers – less web site work & fast empowerment

Capacity Of Intech
Solid Fuel Fired Boilers - Intech boiler is accessible in capacities from zero.3 TPH to four TPH
