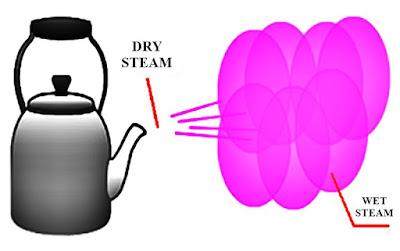

DRY STEAM Vs. WET STEAM

Dry steam is formed when water is heated to its boiling point & then vaporized with additional heat. All the heat present is used in transforming water into steam therefore, no water droplets are present.
Wet steam is a mixture of steam & water containing more than 5 % water. Wet steam is formed when a portion of its water molecules have given up their energy (latent heat) and condense to form tiny water droplets.
